EZ Fabric Wall Flat Panel

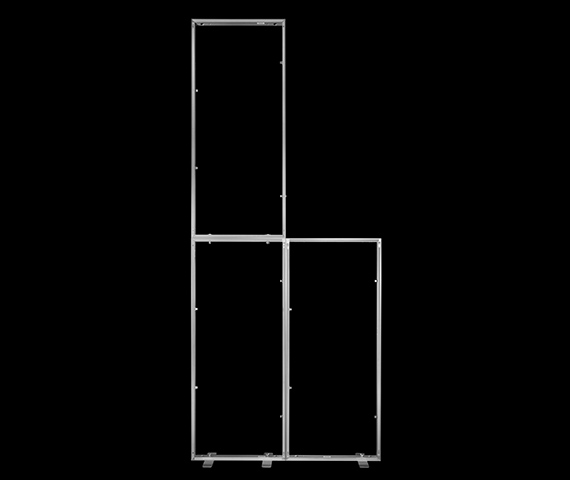

The EZ Fabric Wall™ System is designed around a 39 in. W x 93 in. H wall with half width, half height and entry header size variations available. Curved variations are also available. Many EZ Fabric Walls™ are available in two wall corner assembly options (locked or welded frames). Locked walls can be broken down for overnight shipping. Welded walls can be shipped whole, are lighter weight, but are typically shipped via Ground methods.
Versatility

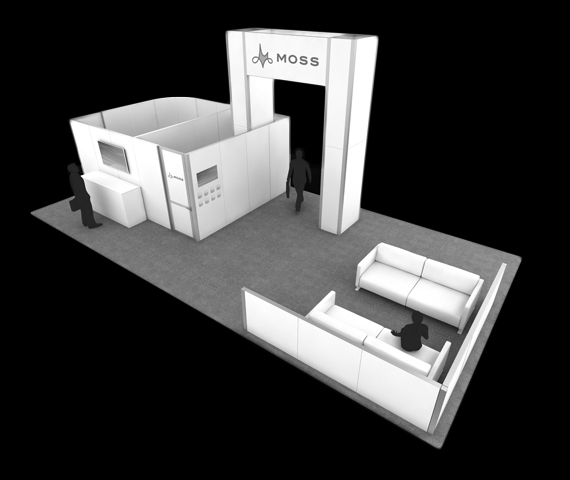

The EZ Fabric Wall™ System combines the versatility of modular walls with the benefits of lightweight fabric structures. With a variety of widths and heights, the walls can be configured to make the most of any display space.
Fabric & Graphic Options
The EZ Fabric Wall™ System is designed for use with Moss Photo Fabric® graphics – the highest quality printed graphics on fabric in the industry. Graphics attach to the EZ Fabric extrusion using the simple Moss Groove gasket attachment. Moss also offers 1/8in. Rigid Graphics with UV Direct Print Graphics.
Accessories
Many accessories are available including internal lighting, monitor options, height extension kit, hidden corner post, a sound and light blocking layer, shelves, and more. EZ Fabric Walls™ are versatile and can be easily used with existing exhibit elements
This product is covered by one or more of the following U.S. Patent Number(s): 8,015,736; 8,196,326; 8,956,071 as well as additional pending U.S. Patent(s) owned by Moss Holding Company.
Fabrics
- EZ Wall- Printed BaseTex
- EZ Wall- White BaseTex
- EZ Wall- Printed BarrierTex
- EZ Wall- White BarrierTex
Rental and Purchase Sizes:
| Horizontal Dimension | Vertical Dimension | Weight |
|---|---|---|
| 19.5 in (1 ft. 7.5 in.) | 46.5 in. (3 ft. 10.5 in.) | 12.8 lbs. |
| 19.5 in. (1 ft. 7.5 in.) | 46.5 in. (3 ft. 10.5 in.) | 12.8 lbs. |
| 19.5 in. wide (1 ft. 7.5 in.) | 93 in. high (7.75 ft.) | 19.4 lbs. |
| 19.5 in. wide (1 ft. 7.5 in.) | 93 in. high (7 ft 9 in.) | 19.4 lbs. |
| 32.5 in. (2 ft. 8.5 in.) | 46.5 in. (3 ft. 10.5 in.) | 15.6 lbs. |
| 32.5 in. wide (2 ft. 8.5 in.) | 93 in. high (7.75 ft.) | 21.1 lbs. |
| 32.5 in. wide (2 ft. 8.5 in.) | 93 in. high (7 ft. 9 in.) | 21.1 lbs. |
| 39 in. wide (3 ft. 3 in.) | 14 in. high (1 ft. 2 in.) | 8.6 lbs. |
| 39 in. wide (3 ft. 3 in.) | 46.5 in. high (3 ft. 10.5 in.) | 14.1 lbs. |
| 39 in. wide (3 ft. 3 in.) | 93 in. high (7 ft. 9 in.) | 24.4 lbs. |
| 39 in. wide (3.25 ft.) | 14 in. high (1 ft. 2 in.) | 8.6 lbs. |
| 39 in. wide (3.25 ft.) | 46.5 in. high (3 ft. 10.5 in.) | 14.1 lbs. |
| 39 in. wide (3.25 ft.) | 93 in. high (7.75 ft.) | 24.4 lbs. |
