WebBright™ Double Sided Lightbox, 200mm

WebBright™ Double Sided Lightbox 200mm offers brilliant, energy-efficient illumination on both sides for maximum impact. With advanced LED technology and easy-install frames, it’s a bold, cost-effective display solution that meets top safety standards.

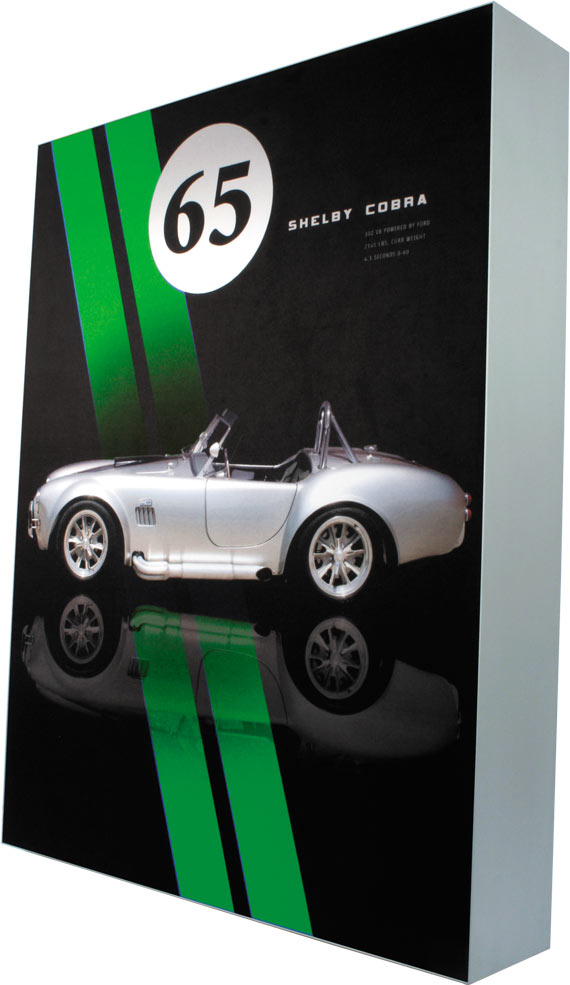

The Moss WebBright™ 200mm double sided lightbox is a beautiful display perfect for a big, bold statement. WebBright™ lightbox uses our patented Tension Lock™ corners for fast, strong frame assembly. No loose parts and tiny screws to loose. Additionally, Moss uses a custom manufactured textile designed for backlighting that is wrinkle resistant and produces dramatically vibrant graphics. The LED Lattice ships flat for compact shipping and snaps easily into place.

Maximum seamless graphic size: 15ft. x 50ft. for UV print 10 ft. x 50ft. for dye sub print
Clean, bright white lighting at 6,000 degrees Kelvin
Lattice widths: 280mm, 420mm, 560mm
Energy-efficient, using as little as 5.28 W/sq. ft.
LED life expectancy of 50,000+ hours
2-year warranty on lattice
Lighting - The Moss WebBright lightbox comes with LED light module lattice flat for shipping – simply snap the lattice to the frame. The LED modules are an energy efficient lighting solution, only using 5 watts per square foot with a LED life expectancy of 50,000+ hours. Field maintenance is easy with replacement lattice strips. All lighting components are UL approved high voltage components. All Moss lightboxes are ETL Listed for the U.S. and Canada and meet UL standards for safety.
Display Options - Us the WebBright LED lightbox freestanding, hanging or wall mounted. Add base plates for free standing lightboxes. Base plates are available in multiple sizes and configurations to stabilize & support any lightbox. Add Z-shaped cleats attached to the wall and hang the Moss lightbox on the cleats for an easy and quick installation. To hang simply suspended from the ceiling or other structural supports by attaching eye bolts to the framing.
This product is covered by one more of the following U.S. Patent Number(s): 8,956,071 as well as additional pending U.S. Patent(s) owned by Moss Holding Company.

Super vivid, glare-free, and extra sharp Photo Fabric® graphics result in dramatic visual impact. Colors pop to life with rear illumination. Moss offers 10ft seamless graphics for extra large light box solutions. Installation and graphic replacement is easy, minimizing installation costs. A clean, tensioned fit is ensured with our unique tension strip. The durable fabric is machine washable for easy cleaning. Compact and lightweight fabric graphics reduce shipping costs.

Purchase and Rental Sizes

Horizontal Dimension	Vertical Dimension	Weight	Box Weight
120 in. long (10 ft.)	42 in. high (3.5 ft.)	58 lbs.	96 lbs.
192 in. long (16 ft)	48 in. high (4 ft)	119 lbs.	230 lbs.
240 in. long (20 ft.)	48 in. high (4 ft.)	130 lbs.	230 lbs.
